Ao3406 Datasheet

Ao3406 Product Introduction:

High transfer conductivity
High transfer conductivity means that when a small voltage change is applied to the gate, a significant current change can be generated between the drain and source. This characteristic makes it particularly outstanding in terms of switching speed and power conversion efficiency. In switching power supplies, DC-DC converters, and power management systems, high transfer conductivity characteristics can effectively reduce switching losses and improve overall system energy efficiency.

Low opening threshold level
The low turn-on threshold level makes it perform well in low voltage applications. Its typical threshold voltage (V_GS (th)) is only 1.2V, which means it can conduct at gate voltages below 2V. This feature makes it very suitable for low-voltage power supplies and battery powered equipment. For example, in portable devices such as smartphones and tablets, efficient current control can be provided at lower operating voltages, extending battery life and improving device endurance.

Small volume
Adopting SOT-23 packaging, it has a compact size, which makes it very suitable for application in space limited electronic devices. The size of the SOT-23 package is 2.92mm x 1.3mm, with a thickness of only 1.1mm, making it easy to integrate onto high-density circuit boards. This small volume packaging not only helps to reduce the footprint of circuit boards, but also improves the integration of the entire circuit, making it suitable for the miniaturization design needs of modern electronic products.

high reliability
Emphasizing high reliability in the design and manufacturing process, its excellent performance and long lifespan make it an ideal choice for various applications. The maximum drain current (I-D) is 6A, and the maximum drain source voltage (V-DS) is 30V. These parameters ensure that it can still operate stably under high current and high voltage conditions. In addition, it also has excellent thermal performance, with a maximum junction temperature of 150 ° C, which can maintain stable operation in high-temperature environments.

High reliability is not only reflected in its electrical performance, but also in its mechanical performance. Using high-quality packaging materials, it can resist external environmental erosion such as moisture, vibration, and mechanical impact, ensuring normal operation in various harsh environments. This high reliability makes it widely used in industrial control, automotive electronics, and communication equipment.

extensive use
With its high transfer conductivity, low turn-on threshold level, small size, and high reliability, it is widely used in various electronic devices and systems. Here are some typical application scenarios:

Switching power supply: As a switching component in a switching power supply, it can provide efficient current conversion and control, improving the overall efficiency and reliability of the power supply.

DC-DC converter: In DC-DC converters, the high transfer conductivity characteristics enable them to quickly respond to voltage changes, achieving efficient voltage regulation and stable output.

Battery management system: In the battery management system, low threshold level and high reliability ensure that the battery can work stably under different load conditions, extending the battery life.

Portable devices: In portable devices such as smartphones and tablets, their small size and low power consumption make them ideal current control components, helping to improve the device's battery life.

Industrial control: In industrial control systems, high reliability and durability ensure that equipment can still operate stably in harsh environments, reducing downtime and maintenance costs caused by component failures.

Automotive Electronics: In automotive electronic systems, high current and high voltage processing capabilities make them suitable for various power management and control applications, improving the overall performance and reliability of automotive electronic systems.

Affordable price
Not only excellent performance, but also affordable price. Compared to other high-performance MOSFETs, it occupies an important position in the market with its high cost-effectiveness. Its price advantage makes it an ideal choice for mass production and low-cost applications. For manufacturers, it can significantly reduce production costs and improve product market competitiveness.

Easy to use
The design is simple and easy to use. Its standard SOT-23 packaging design is convenient for welding and installation, and is suitable for various PCB board designs. Both manual welding and automated production can be easily integrated into circuits. In addition, technical materials and application guides are very rich, making it easy for users to find relevant information, quickly get started, and complete the design. This ease of use enables engineers to save a lot of time and effort in the design and development process, enabling rapid product development and production.

Ao3406 Datasheet:

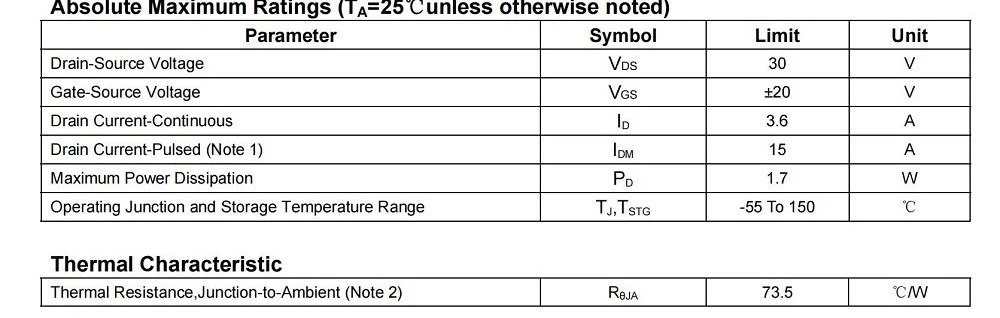

MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)

ELECTRICAL CHARACTERISTICS (Ta=25 )

Related product introduction：

AO3425- This is an N-shaped field-effect transistor with low voltage and low on resistance.

AO3465- This is a P-shaped field-effect transistor with fast switching speed and low on resistance.

AO3415- This is an N-shaped field-effect transistor with fast switching speed and low on resistance.

AO3409- This is a P-shaped field-effect transistor with low leakage current and low on resistance.

AO3402- This is an N-shaped field-effect transistor with low on resistance and fast switching speed.
