TO-126 Plastic-Encapsulate Transistors 13003



Advantages of TO-126 Plastic Encapsulate Transformers 13003



Powerful performance: It is a high-power transistor with extremely strong amplification and switching effects, which can meet various circuit needs.



Good heat dissipation: Using plastic packaging, it has good heat dissipation performance, which can ensure the stability and reliability of transistor operation.



Widely applicable: suitable for various circuits, such as power amplification, power management, switches, etc. Widely used in fields such as household appliances, electronic instruments, electronic products, automotive electronics, and computer peripherals.



Specification parameters for TO-126 Plastic Encapsulate Transformers 13003



Maximum voltage: 400V



Maximum current: 1.5A



Voltage amplification factor: 50-500



Frequency characteristics: up to 10MHz



Working temperature range: -55 ℃~+150 ℃



Packaging form: TO-126



Regarding the use of TO-126 Plastic Encapsulate Transformers 13003



This product is an important electronic component commonly used in circuits such as power amplifiers, power management, and switches. Before using transistors, it is important to pay attention to the following points:



Correct identification of pins: There are three pins, including emitter, base, and collector. Correctly identifying pins is a prerequisite for ensuring the normal operation of transistors.



Reasonable circuit design: Designing a reasonable circuit based on different circuit requirements is an important factor in ensuring the normal operation of the circuit. Before using transistors, it is necessary to select appropriate transistors according to circuit requirements and design a reasonable circuit.



Pay attention to heat dissipation: It has good heat dissipation performance, but during high-power operation, it is necessary to pay attention to heat dissipation to avoid burning out the transistor.



The Future of TO-126 Plastic Encapsulate Transformers 13003



This product is a very important electronic component with a wide range of applications and a very broad future development prospect. With the continuous progress and innovation of technology, it will be applied in a wider range of fields, bringing more convenience and innovation to people's lives.

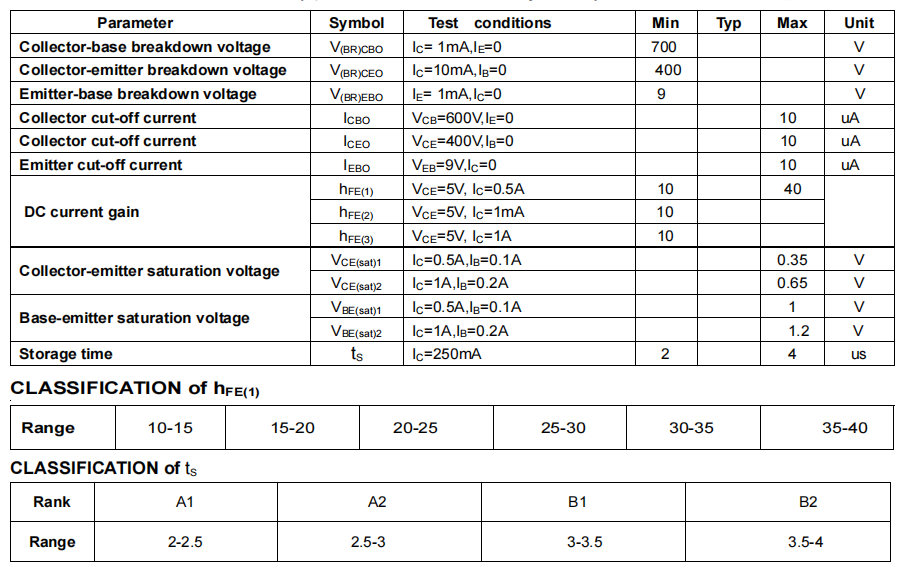

TO-126 Plastic-Encapsulate Transistors 13003 datasheet:



Related product introduction：



MJE13003 (TO-126 package)
Features: High voltage, low energy consumption, fast switching speed, commonly used in power adapters, chargers and other switching power equipment.
Voltage: withstand voltage up to 400V
Current: The maximum collector current is 1.5A
Power consumption: The maximum power consumption is 40W

2SC13003 (TO-126 package)
Features: High voltage resistance, suitable for high-frequency applications.
Voltage: withstand voltage of 700V
Current: The maximum collector current is 1.5A
Power consumption: maximum power consumption of 40W
Application: Typically used for switching operations in inductor and capacitor circuits.

13005 (TO-126 package)
Features: It has higher withstand voltage and current capability, suitable for application in high-power equipment.
Voltage: Withstand voltage 600V
Current: The maximum collector current is 4A
Power consumption: The maximum power consumption is 40W
Application: Widely used in power amplifiers, inverters, rectifiers, etc.

13007 (TO-126 package)
Features: Suitable for higher voltage and current operation, usually used for switching power supplies and electronic ballasts.
Voltage: Maximum withstand voltage is 700V
Current: The collector current is 8A
Power consumption: The maximum power consumption is 75W
