1% Thick Film Chip Resistor

PART NUMBER

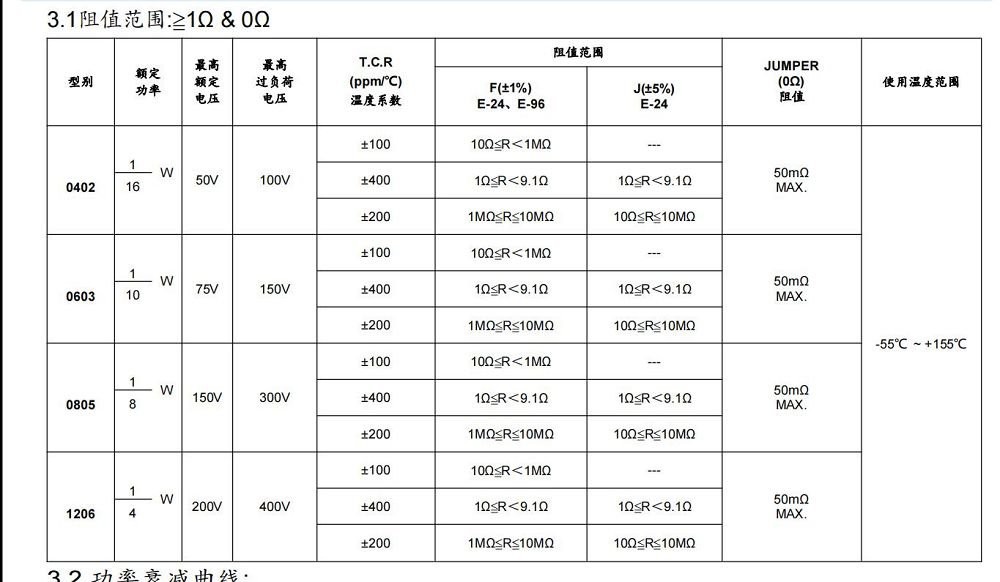

Specification

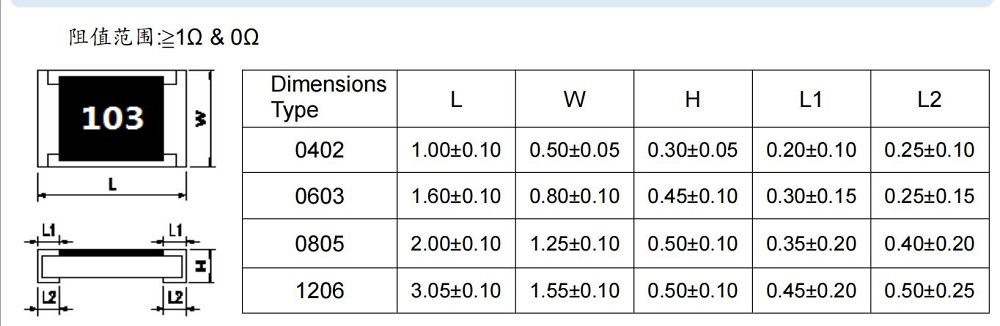

SIZE

1% thick film chip resistor: making electronic product circuits more precise and high-quality

As a commonly used electronic component in electronic devices, thick film chip resistors have a wide range of applications in modern electronic products. In its continuous upgrading and improvement process, 1% thick film chip resistors have become an indispensable product. So, what exactly is a 1% thick film chip resistor? Now, let's take a closer look.

External protection layer: ensuring the quality and service life of the chip

The surface of the 1% thick film chip resistor is covered with an external protective layer, which can fully ensure that the external impact and damage it receives during use are minimized as much as possible. Of course, the purpose of this protection is not only to avoid mechanical damage, but also to ensure the quality and service life of electronic components during use.

Marking: Accurately identify each electronic component

Marking is an indispensable part of electronic components and also an important basis for distinguishing the functions and characteristics of electronic components. The marking of 1% thick film chip resistors is produced through baking printing, and important information such as specifications, brands, batches, serial numbers, etc. are accurately and clearly marked on the chip every time it is produced, so that manufacturers and users can manage and use it.

Internal protection layer: protects the components inside the resistor

The internal protective layer is one of the important components of the 1% thick film chip resistor. Its main function is to protect the components inside the resistor, such as the conductor layer and ceramic substrate, to prevent problems such as component aging caused by long-term use of electronic components.

Resistance layer: controls the current of electronic components

The resistance layer plays an indispensable role in 1% thick film chip resistors. Its main function is to control the current of electronic components by designing different resistance values, thereby achieving control over the circuit. At the same time, minimize the burning of electronic components caused by excessive current as much as possible.

Conducting layer: achieving signal transmission

In a 1% thick film chip resistor, the conductor layer is the component responsible for transmitting signals to other parts. It has excellent conductivity and can assist electronic components in completing various circuit connections.

Side conductor layer: expanding the application range of electronic components

The side conductor layer is designed to expand the application range of electronic components, which can expand the usage area of electronic components, reduce wiring time and effort, and also improve the performance of electronic components.

Nickel and tin: selection of high-quality materials to improve the quality of electronic components

The nickel and tin used in the 1% thick film chip resistor are both high-quality materials. The physical properties of these materials can effectively improve the signal transmission and performance of electronic components, making the product's service life longer and more reliable.

Ceramic substrate: the key to ensuring the reliability of electronic components

As a support plate for 1% thick film chip resistors, ceramic substrates are often considered the key to ensuring the reliability of electronic components. Its main function is to provide the mechanical strength and stability required for electronic components, thereby ensuring their reliability and safety during use.
