Types of diodes and their applications in power management

Rectifier diode
Basic Principles
It is the most common type of diode, whose main function is to convert alternating current (AC) into direct current (DC). Rectifier diodes have a single directional conductivity, allowing current to flow in one direction while blocking current in the opposite direction.

Application scenarios
Widely used in power converters, adapters, and various DC power devices. For example, in a switching power supply, it is used to rectify the high-frequency AC power output by the transformer into DC power, providing a stable power supply for the load.

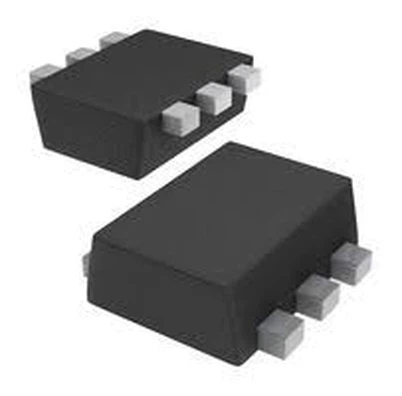

Schottky diode
Basic Principles
Has lower forward voltage drop and extremely fast recovery time. Its forward voltage drop is usually between 0.2V and 0.4V, much lower than the 0.7V of ordinary silicon diodes. These characteristics make it outstanding in high-frequency and low-voltage applications.

Application scenarios
Mainly used in high-frequency switching power supplies, fast chargers, and high-efficiency rectifier circuits. Its low forward voltage drop characteristic helps to reduce power loss and improve conversion efficiency. For example, in DC-DC converters, it is used to achieve efficient energy conversion and improve the overall efficiency of the circuit.

Fast recovery diode
Basic Principles
Compared with ordinary rectifier diodes, it has a faster reverse recovery time. This characteristic enables fast recovery diodes to effectively reduce switching losses and electromagnetic interference (EMI) in high-frequency switching circuits.

Application scenarios
Widely used in switch mode power supplies, inverters, and motor drive circuits. For example, in inverters, it is used for high-frequency rectification and freewheeling to improve the conversion efficiency and reliability of the inverter.

Zener diode
Basic Principles
It is a special type of diode that can operate stably under reverse breakdown voltage, and the reverse breakdown voltage is relatively fixed. This feature enables precise voltage regulation and voltage stabilization in the circuit.

Application scenarios
Widely used in regulated power supplies, voltage reference and protection circuits. For example, in a regulated power supply, it is used to provide a stable reference voltage to ensure a constant output voltage. In voltage protection circuits, it is used to prevent overvoltage from damaging electronic devices.

Varactor diode
Basic Principles
It is a diode that utilizes the capacitance characteristics of PN junction, and its capacitance value varies with the applied voltage. It has important applications in tuning and frequency control circuits.

Application scenarios
Mainly used in frequency modulation (FM) tuning, voltage controlled oscillators (VCO), and radio frequency (RF) circuits. For example, in FM radios, it is used to achieve automatic circuit tuning and frequency stability.

light-emitting diode
Basic Principles
It is a diode that converts electrical energy into light energy. It excites semiconductor materials to emit light through the current of the PN junction, which has the characteristics of high efficiency, long lifespan, and low power consumption.

Application scenarios
Widely used in displays, indicator lights, and lighting systems. In power management, LEDs are commonly used for power status indication, alarm indication, and backlighting. For example, in switch mode power supplies, LEDs are used to indicate the working status and fault alarms of the power supply, improving user convenience and safety.

Zener diode
Basic Principles
Stabilizing current by controlling voltage is commonly used in power supply stabilization circuits. Can provide a constant output voltage to prevent power supply voltage fluctuations from affecting electronic devices.

Application scenarios
Widely used in various power circuits, such as voltage regulators, chargers, and power adapters. For example, in a charger, it is used to ensure stable output voltage and protect charging devices and batteries.

Avalanche diode
Basic Principles
Working through avalanche breakdown mechanism, it has high voltage resistance and high energy absorption capacity. Excellent performance in high voltage and high-power applications, able to withstand transient high voltage surges.

Application scenarios
Mainly used in overvoltage protection circuits. For example, in power and communication equipment, it is used to prevent voltage spikes from damaging the equipment, ensuring the safety and stability of the system.
